CNC Cycle Time Formulas

Choose the right cycle-time formula for milling, turning, drilling, tapping, grooving, and full-part estimating before using the live calculator.

Use this formula selector and comparison index for milling, turning, drilling, tapping, and grooving. Pick the formula family here; use the calculator when you need repeatable cycle-time output.

Time, Cycle, and Feeds Decision Path

Follow this path from feed setup to formula references, operation-specific cycle math, and quote-ready calculators.

1. Speed and feed inputsChoose RPM, feed rate, chip load, DOC, MRR, and power start points for milling and routing.Use first when cutting parameters are unknown or the quote depends on a plausible feed-rate input.2. Formula chainAudit SFM to RPM, chip load to feed rate, MRR, and cutting-time handoffs.Use when formulas and examples matter more than a live setup calculator.3. Operation formulaSelect milling, turning, drilling, tapping, grooving, or full-part cycle-time math.Use when operation type changes the equation before a calculator result should be trusted.4. Manual time auditExplain cutting time, non-cutting allowances, setup, inspection, and measured overhead.Use before calculator entry when assumptions need to be audited or explained to a quote reviewer.5. Quote-ready cycle timeConvert calibrated cutting, non-cutting, setup, and batch assumptions into repeatable outputs.Use after feeds, formulas, and overhead assumptions are credible enough for quoting or capacity planning.

Don't Do This By Hand

These formulas are complex. Our Machining Time Calculator handles the math, including approach and over-travel distances.

Keep turning and drilling on the selector plus the existing support guides until real quoting workflows need a separate calculator experience.

Use the Calculator
CNC process modelEngineering inputs converted into a checked setupInputsCalculationValidationValidate machining workflows against machine, tool, material, and inspection constraints.

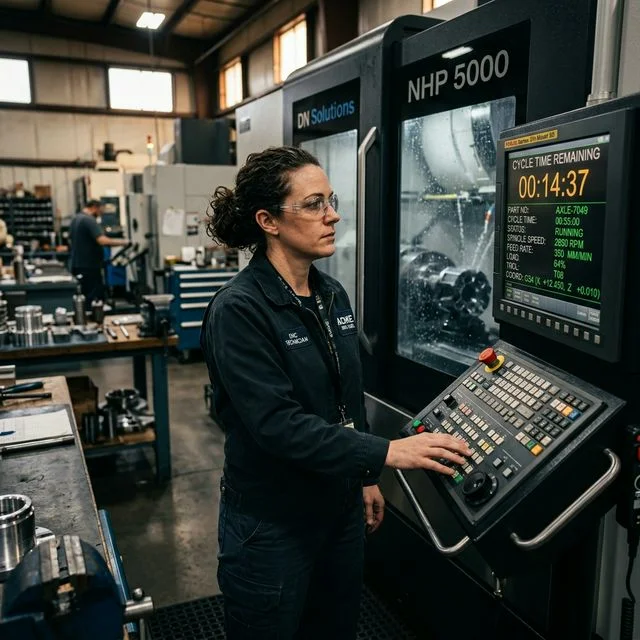

An operator monitors the cycle time countdown on the CNC controller — the gap between calculated and actual time is where quoting accuracy lives

Key Variables

LLength of Cut (in)
fFeed Rate (IPM or IPR)
NRPM
DTool/Part Diameter (in)

Milling Formulas

Standard Side/Slot Milling

Time (min) = L / f

Where f = IPM (Inches Per Minute). Calculate IPM first using: RPM × IPT × Flutes.

Face Milling (with Approach/Overtravel)

Time = (L + A + O) / f
A (Approach Distance): Program-dependent value used to ensure full cutter engagement before the effective cut zone.
O (Overtravel): Program-dependent value used to clear the part edge and maintain finish quality.

Turning (Lathe) Formulas

Turning / Boring (Constant RPM)

Time (min) = L / (f_n × N)
  • f_n: Feed per revolution (IPR), selected from tool/material recommendations.
  • N: RPM.

Note: CSS (Constant Surface Speed) changes RPM as diameter changes, making this formula an approximation for facing cuts.

Drilling / Tapping

Drilling (Standard)

Time = Depth / (N × IPR)

Peck Drilling (Deep Holes)

Time = (Depth / (N × IPR)) × Efficiency Factor

Deep-hole cycles require retract and chip-clear events. Model the multiplier from your actual peck depth, retract strategy, and machine acceleration behavior.

Threading & Tapping

Tapping (Rigid or Floating)

Time = (Depth / Pitch) / RPM × 2

The × 2 accounts for both the cutting stroke (downward) and the reverse stroke (retract). For rigid tapping, the spindle reverses at full speed. For floating holders, retract is slightly slower.

Example: Tapping M8×1.25 (pitch = 1.25mm), 15mm deep at 500 RPM.
Revolutions = 15 / 1.25 = 12 turns. Time = (12 / 500) × 2 = 0.048 min (2.9 sec).

Single-Point Threading (Lathe)

Time = (Thread Length / (Pitch × RPM)) × Number of Passes

Single-point threading usually requires multiple passes based on thread pitch, depth, material, and tool condition. Include spring-pass logic according to your thread quality target.

Grooving & Parting Off

Grooving / Parting (Lathe)

Time = Radial Depth / (f_n × N)
  • Radial Depth: Distance from OD to groove bottom (or center for parting).
  • f_n: Feed per revolution selected from insert grade, geometry, and part rigidity.
Example: Parting a 2" diameter bar at 350 RPM, 0.003" IPR.
Radial depth = 1" (to center). Time = 1 / (0.003 × 350) = 0.95 min (57 sec).

Operation-Specific Support Guides

Turning cycle-time formulaUse for feed per revolution, CSS/RPM, pass count, facing, boring, and chuck handling.Drilling cycle-time formulaUse for feed per revolution, peck/retract, dwell, spot drilling, and hole-count assumptions.

Industrial Case Study: Complete Part Estimation

Part: Aluminum 6061-T6 bracket, 6-operation machining sequence. Theoretical vs. actual time comparison.

OperationCalculatedActualVariance
1. Face Mill (top surface)0.25 min0.30 min+20%
2. Rough Pocket (3 passes)2.10 min2.50 min+19%
3. Finish Pocket (1 pass)1.40 min1.55 min+11%
4. Drill 6× holes (#7 drill)0.15 min0.25 min+67%
5. Tap 6× M5 holes0.10 min0.20 min+100%
6. Chamfer edges0.30 min0.35 min+17%
Subtotal (cutting only)4.30 min5.15 min+20%
+ Tool changes (5 × 6 sec)—0.50 min
+ Rapid positioning—0.40 min
Total Cycle Time4.30 min6.05 min+41%

Key Takeaway:

In this scenario, actual cycle time was materially higher than cutting-only time because of non-cutting overhead. Use your own historical variance by operation type instead of fixed multipliers when quoting.

Related Guides

How to Estimate Machining Time
CNC Machining Cost Estimation
Machining Time Reduction

Frequently Asked Questions

Why is my actual cycle time 20-50% longer than calculated?

The T = L/F formula only calculates pure cutting engagement. Actual cycles include overhead from tool changes, accelerations, rapids, spindle state transitions, probing, and handling. These overheads dominate especially in short-cycle operations.

How do I estimate cycle time for 3D contouring / sculptured surfaces?

For complex 3D toolpaths, use CAM-generated time from the actual posted toolpath whenever possible. For pre-CAM quoting, use a structured proxy model and reconcile against historical jobs of similar geometry and tolerance.

What is a good cycle time buffer for quoting?

Use a buffer derived from your own historical ratio of actual cycle time to calculated cutting time, segmented by operation class and machine family. Avoid universal percentages and recalibrate the buffer periodically.
