Direct answer: raise MRR only until spindle power, tool engagement, chip evacuation, or fixture rigidity becomes the limiting factor.
Use this guide to improve MRR across milling, turning, and drilling; use the calculator for milling-style numeric checks.
The Foundation: What is MRR?
Material Removal Rate (MRR), often denoted in engineering texts as Q, is a volumetric measurement of how much solid metal your CNC machine is turning into chips every single minute. It is one practical roughing-efficiency metric, not a release decision by itself.
Why Cubic Inches Matter
A machining center has a real hourly burden whether it is removing 10 in³/min of aluminum or 1 in³/min. A professional MRR change should raise removal rate only until the first hard limit appears: (1) spindle horsepower, (2) machine/fixture rigidity, (3) tool holding friction, or (4) chip evacuation.
MRR Calculations by Operation
Because milling, turning, and drilling exhibit entirely different tool engagement physics, the formula for calculating MRR changes depending on the operation.
Formula handoff
MRR formula handoff
Match the operation formula first, then convert credible removal-rate assumptions into time, power, or upstream speed-and-feed checks.
Best starting point
Milling-style MRR logic where width of cut, depth of cut, and feed rate are known.
Branch when
Turning or drilling geometry, spindle power, machining time, or upstream SFM/feed math controls the decision.
1. CNC Milling Formula
Q = Ae × Ap × Vf
- Ae (Width of Cut): The radial step-over of the tool (inches or mm).
- Ap (Depth of Cut): The axial depth the tool plunges into the material (inches or mm).
- Vf (Feed Rate): The linear speed of the table moving the part into the cutter (IPM or mm/min).
Example: A 0.5" stepover (Ae) × 1.0" depth (Ap) × 100 IPM feed (Vf) = 50 in³/min MRR.
2. CNC Lathe Turning Formula
Q = Vc × f × ap × 12
- Vc (Cutting Speed): Surface speed of the rotating part (SFM). (Multiply by 12 to convert feet to inches).
- f (Feed Rate): Distance tool advances per revolution (Inches/Rev or IPR).
- ap (Depth of Cut): Radial depth the insert is plunging into the workpiece stock (inches).
3. CNC Drilling Formula
Q = (π × D² / 4) × Vf
- (π × D² / 4): The calculated cross-sectional area of the drill bit based on Diameter (D).
- Vf (Feed Rate): The plunge feed rate (IPM or mm/min).
High-Efficiency Milling (HEM) & Radial Chip Thinning

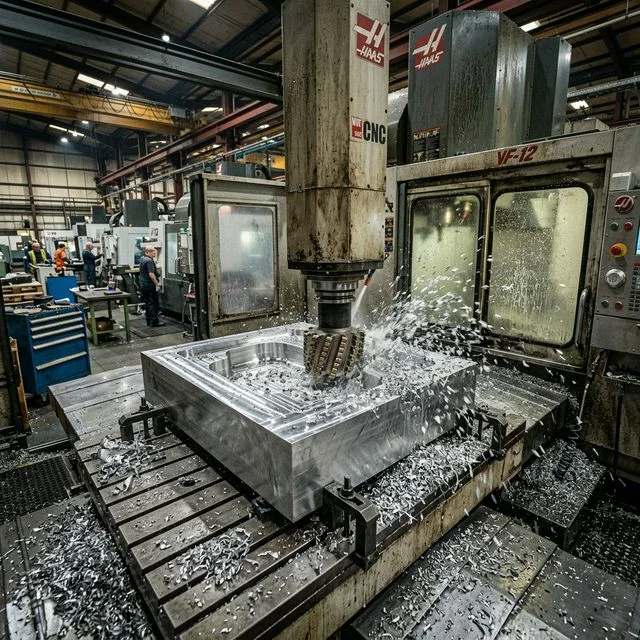

A decade ago, the standard philosophy for increasing MRR in milling was "Heavy roughing." Machinists would use a 50% radial stepover (Ae) and a 50% axial depth of cut (Ap), feeding somewhat slowly to prevent the 50-taper machine from groaning.
Today, many modern CAM workflows use High-Efficiency Milling (HEM) when geometry, tooling, and machine rigidity allow it because the approach can raise removal rate without forcing full-slot engagement.
The HEM Strategy
- Tiny Stepover (Ae): Drop your radial engagement to just 5-15% of the tool's diameter.
- Deep Axial Engagement (Ap): Use as much flute length as your tool, holder clearance, and setup stability will safely support.
- Compensated Feed Rates (Vf): Because you are taking such a small radial bite, radial chip thinning reduces actual chip thickness. You often need a meaningfully higher programmed feed rate to keep the tool cutting instead of rubbing.
When the setup is stable, MRR can rise substantially because feed and axial engagement stay high while heat and wear are distributed across more of the flute length.
Calculating Horsepower Limitations
As you increase MRR, the spindle motor must draw more amperage to maintain RPM. You can mathematically forecast whether a cut will stall your spindle using the Unit Power Factor (Kp).
Required HP = MRR (in³/min) × Kp
- Aluminum Kp: ≈ 0.25 to 0.30 HP/in³
- Mild Steel Kp: ≈ 0.80 to 1.00 HP/in³
- Titanium Kp: ≈ 1.20 to 1.50 HP/in³
Scenario Checkout: You want to rough aluminum at 60 in³/min on a Haas VF-2 with a 30 HP spindle.60 × 0.25 = 15 HP required.That suggests roughly 50% of rated spindle horsepower before applying your normal safety margin for tool wear, chip evacuation, and transient load spikes.
Prefer metric planning? Multiply horsepower by 0.746 to approximate kilowatts. Our MRR calculator reports spindle demand in kW using the same planning logic.
3-Step Troubleshooting Guide For High MRR Chatter
If you push removal rate too far without enough rigidity, chatter can erase any productivity gain. Use this quick triage sequence before abandoning the strategy altogether:
Frequently Asked Questions
What is the formula for Material Removal Rate (MRR) in milling?
For CNC milling, MRR = Ae (Radial Depth/Stepover) × Ap (Axial Depth) × Vf (Table Feed Rate). The resulting unit is typically cubic inches per minute (in³/min) or cubic centimeters per minute (cm³/min).
How do you calculate MRR for lathe turning?
For CNC turning in imperial units, a common shortcut is MRR = 12 × Vc × f × ap, where Vc is surface speed in SFM, f is feed in inches per revolution, and ap is radial depth of cut in inches. The factor of 12 converts feet into inches.
What is the relationship between MRR and Spindle Horsepower?
Every material requires a specific amount of horsepower to remove one cubic inch per minute, known as the Unit Power Factor (Kp). For example, aluminum requires ~0.25 HP per in³/min, while steel requires ~1.0 HP per in³/min. Therefore, HP = MRR × Kp.
What is High-Efficiency Milling (HEM)?
HEM is a roughing strategy that uses a very low radial depth of cut (Ae, 5-15%) combined with a very deep axial depth of cut (Ap, often 200%+ of tool diameter). This allows for extremely high feed rates via radial chip thinning, distributing wear across the entire flute length and maximizing MRR without overloading the spindle.
How do I stop chatter when trying to increase my MRR?
To eliminate chatter at high MRR: 1) Increase feed rate to force the tool to bite rather than rub; 2) Decrease spindle RPM slightly to disrupt the harmonic resonance frequency; 3) Decrease the radial stepover (Ae) to reduce tool deflection while maintaining the deep axial cut.
