International Standards

GB/T 17421 Standards Guide

Importing a CNC machine from China? You will see "GB/T 17421" on the inspection report. Here is how it maps to the ISO standards you know.

Reviewed: 2026-03-08Source: Reviewed against ISO 230, GB/T 17421, OEM documentation, and shop-floor calculator assumptions.

Direct answer: GB/T 17421 is commonly mapped to the ISO 230 machine-tool test family, but equivalence must be checked by edition, clause, report method, and contract acceptance language.

Use this guide to map GB/T 17421 to ISO 230 for imported machine acceptance; verify edition, clause, report template, and contract language before treating reports as equivalent. Use the ISO overview for acceptance evidence and the ISO 230-2 guide for positioning-report interpretation.

ISO Acceptance Decision Path

Follow this path from ISO overview to geometric-test method, axis reports, series selection, and GB/T 17421 mapping.

1. Acceptance evidenceDefine the proof set for buying, relocating, or accepting a CNC machine.Use first when the question is what evidence is required before sign-off.2. ISO 230-1 vs 230-2Separate geometric checks from axis positioning and repeatability reports.Use when the user needs to choose between geometric method and positioning method.3. Axis report interpretationRead positioning accuracy, repeatability, reversal behavior, and report limits.Use when a laser/interferometer report already exists and needs interpretation.4. ISO 230 selectorChoose the correct ISO 230 family before reading a detailed guide.Use when the series map matters more than a single test explanation.5. GB/T mappingMap GB/T 17421 reports to ISO 230 acceptance workflows for imported machines.Use when Chinese supplier documents must be compared with ISO-based contract language.

Standards mapping

GB/T 17421 Acceptance Mapping Checklist

Checklist for mapping GB/T 17421.1-2023 and GB/T 17421.2-2023 acceptance reports to ISO 230-1:2012 and ISO 230-2:2014 evidence.

Source: Final equivalence depends on edition, clause, method, instrument, environment, and contract wording.Updated: 2026-06-24
Mapping itemWhat to verifyHold conditionHandoff
EditionGB/T 17421.1-2023, GB/T 17421.2-2023, ISO 230-1:2012, ISO 230-2:2014, and clause referencesHold if revision or clause is not stated.ISO 230 reference table.
MethodTarget positions, approach directions, instruments, environmentHold if setup details are missing.ISO 230-2 accuracy guide.
Raw evidenceMeasurement records, calibration, uncertainty, raw report pagesHold if only summary values are supplied.Acceptance checklist.
Contract limitPass/fail language in PO, acceptance spec, or builder quoteHold if report metric does not match contract metric.Equipment selection calculator.
Thermal conditionWarm-up, ambient temperature, stabilization and compensation stateHold if thermal condition differs from intended use.ISO 230-3 / builder evidence.
Sign-off packageReport, photos, parameter backup, trial part, corrective actionsHold until evidence package is complete.Machine acceptance checklist.

Download / export next steps

ISO 230 referenceMap GB/T 17421 parts to the corresponding ISO 230 test family.Machine acceptance checklistUse the acceptance checklist to collect sign-off evidence.Equipment selection calculatorConnect acceptance evidence to machine selection decisions.

Download GB/T 17421 mapping PDF

Export the GB/T to ISO 230 mapping checklist for procurement and acceptance review.

What is GB/T 17421?

GB/T stands for "Guobiao/Tuijian" (State Standard / Recommended). For machine-tool acceptance, the current checked mappings are GB/T 17421.1-2023 to ISO 230-1:2012 and GB/T 17421.2-2023 to ISO 230-2:2014.

In practice, these standards are often mapped together by part number, but do not assume every GB/T 17421 part or older report is equivalent without edition, clause, method, and contract review.

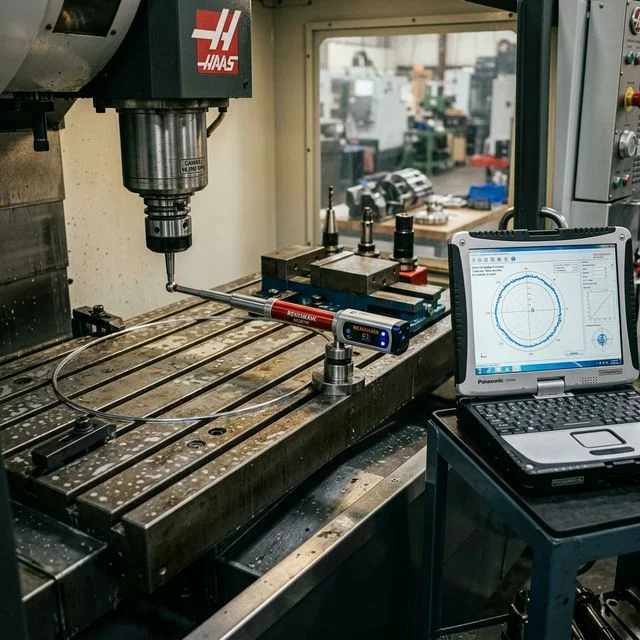

Renishaw QC20-W wireless ballbar test setup on a Haas CNC machine table with telescoping device connected between table center mount and spindle, Panasonic Toughbook showing circular deviation plot for CNC machining workflows
A Renishaw QC20-W wireless ballbar test in progress — the circular deviation plot on the laptop reveals backlash, servo mismatch, and geometric errors per ISO 230-4

Current Checked Mappings

Chinese StandardISO MappingSubject
GB/T 17421.1-2023ISO 230-1:2012Geometric Accuracy
GB/T 17421.2-2023ISO 230-2:2014Positioning Accuracy

Common Pitfalls for Importers

While the standard itself is solid, the application of the standard can vary in lower-tier factories.

Acceptance Mapping Sequence

  1. Confirm the edition: Match GB/T and ISO revision years before comparing clauses.
  2. Confirm the method: Check target positions, approach directions, instruments, environment, and uncertainty statement.
  3. Confirm the report template: Require raw measurement records when a supplier summary does not show setup details.
  4. Confirm the contract limit: Treat the signed purchase acceptance language as the pass/fail authority.

1. Methodology Drift

Acceptance reports can look similar while using different internal test scripts. If the same metric name is produced by different procedures, results are not directly comparable.
Tip: Always request underlying measurement records, not only summary PDFs.

2. Thermal Conditions

Environmental conditions can materially influence measured results. Make sure ambient condition, warm-up, and stabilization details are documented in the report set.

Why This Matters

Understanding GB/T 17421 gives you leverage. If a manufacturer makes an accuracy claim, ask for the exact clause, test procedure, and uncertainty statement behind that number.

Related Calculators

These calculators help turn standards and acceptance data into machine-selection, maintenance, and investment decisions.

Equipment Selection Calculator
Compare machine-fit assumptions after you review the builder’s GB/T 17421 or ISO 230 evidence.
Maintenance Cost Calculator
Model accuracy-related service exposure, inspection intervals, and downtime budgeting around acceptance risk.
Total Cost of Ownership Calculator
Bring standards-driven risk, service cost, and resale assumptions into the lifecycle decision.

Related Guides

ISO 230 Acceptance Evidence Checklist
ISO 230-2 Positioning Report Guide
ISO 230 Series Reference Table

Before accepting imported machine reports, compare the evidence path against the ISO standards overview and the ISO 230 reference table.

Import Checklist

  • Request GB/T 17421.2-2023 report
  • Verify Test Script Alignment
  • Check Ambient Temp on Report
  • Confirm Ballbar Test (Roundness)
